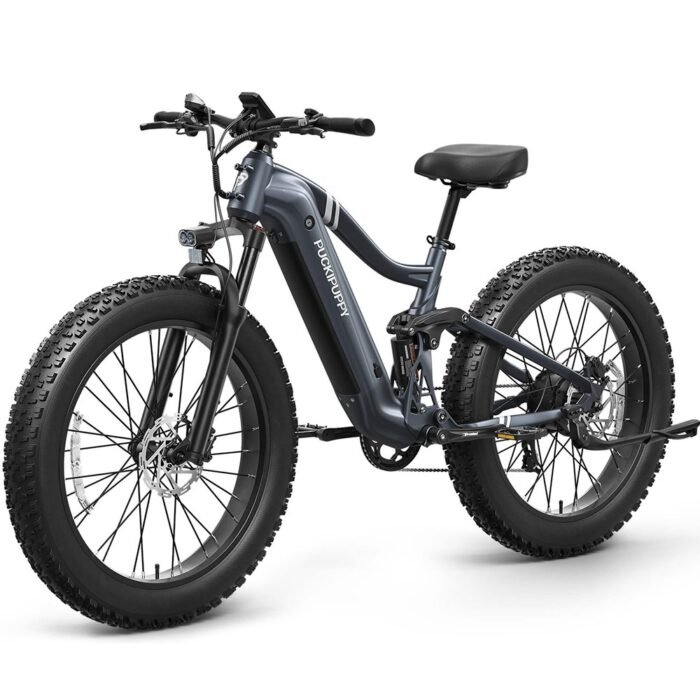

Puckipuppy Boxer — Full-Suspension Fat-Tire Electric Bike

Ride farther, softer, and with more control. The Puckipuppy Boxer pairs a 48V 20Ah
battery (960 Wh) with a 960W peak hub motor, true dual suspension, hydraulic
brakes, and 26×4.0″ fat tires. It’s built for rough city streets, gravel paths, beach access
roads, and weekend trail loops—without beating you up.

For more details, please read our full review of the Puckipuppy Boxer.

Why You’ll Love It

Real Dual Suspension – 130 mm adjustable front fork + rear shock soak up bumps and keep the tire planted.
Big-Range Battery – 48V 20Ah pack delivers 40–80 miles depending on rider, terrain, and assist level.
Confident Power – 960W peak brushless motor handles headwinds and hills; 20 mph throttle / up to 28 mph PAS.
Hydraulic Control – 180 mm rotors (thick 3 mm spec) provide stronger, smoother stopping.
All-Terrain Traction – 26×4.0″ fat tires float over sand, snow, and potholes for year-round fun.
Upgraded LCD – Sunlight-readable color screen shows speed, battery, trip, and more at a glance.
Heavy-Duty Payload – Rated up to 400 lb for larger riders or loaded commutes.

Who It’s For

Riders who prioritize comfort and stability on mixed terrain.
Commuters, RV travelers, and weekend explorers needing real range and reliable brakes.
Big & tall riders or anyone carrying cargo—thanks to the 400 lb capacity.

Ride Feel

Upright and composed. The wide tires and suspension tame broken pavement and gravel chatter.
The cadence-based PAS spins up smoothly, while the thumb throttle is perfect for quick starts
and merging into traffic.

Power & Range

Battery: 48V 20Ah (960 Wh) removable/lockable with BMS power management
Charger: 48V 2A (typical full charge in 8–9 hours)
Speed: Throttle up to 20 mph, pedal assist up to 28 mph (check local regulations)
Claimed range: 40–80 miles (conditions and riding style vary)
Climbing: Manufacturer-rated for up to 35° max slope (short pitches with rider input)

Assist Style	Typical Use	Real-World Range*
PAS 1–2	Cruising bike paths / flat commutes	55–80 miles
PAS 3–4	Mixed terrain / rolling hills	40–60 miles
Throttle-heavy	Frequent starts or headwinds	30–45 miles

*Estimates for guidance only. Range varies with rider weight, cargo, terrain, temperature, and tire pressure.

Key Components

Frame: 6061 aluminum alloy
Fork: 130 mm adjustable suspension
Rear Suspension: Shock with adjustable preload
Motor: 960W peak brushless rear hub
Drive: 1×7 Shimano derailleur & shifter
Brakes: Hydraulic disc brakes, 180 mm rotors (3 mm thickness)
Tires: 26.0″ × 4.0″ fat tires
Controls: Thumb throttle • cadence PAS sensor
Display: 2024 color LCD (high-brightness, glare-resistant)
Saddle: Comfort, widened with extra cushioning
Rims/Spokes: Aluminum rims • 12-gauge spokes (front & rear)
Chain/Crank: Corrosion-resistant chain • 170 mm forged alloy crank
Kickstand: Sturdy aluminum alloy

Size & Fit

Recommended Rider Height: 5′4″–6′6″ • Bike Weight: 68 lb • Max Payload: 400 lb

Measurement	Value
Reach (A)	25.0″
Head Tube Length (B)	5.9″
Wheelbase (C)	48.2″
Standover Height (D)	30.0″
Handlebar Height (E)	44.5″
Saddle Height Min–Max (F–G)	35.6″ – 39.4″
Handlebar Width	28.34″ (≈72 cm)
Overall Length	74.8″ (≈190 cm)

What’s in the Box

Puckipuppy Boxer e-bike (pre-assembled major components)
48V 20Ah removable battery + keys
48V 2A charger & AC cable
Pedals, reflectors, kickstand (installed)
Basic multi-tool & hardware
Quick-start guide / user manual

Safety & Compliance

Class 2/3 configuration: throttle limited to 20 mph; PAS up to 28 mph (observe local e-bike laws).
Water-resistant embedded battery housing; do not submerge or pressure-wash electronics.
Always wear a helmet and check bolts, brakes, and tire pressure before each ride.

Care & Maintenance

Charge indoors at room temperature; store the battery ~50–80% if unused for weeks.
Keep chain clean/lubed; inspect brake pads and rotor bolts regularly.
Set tire pressure for terrain: 18–22 psi (pavement), 12–16 psi (gravel/sand).

Frequently Asked Questions

How far can I ride on one charge?
Most riders see 40–80 miles per charge depending on assist level, terrain, rider/cargo weight, wind, and temperature.

How long does charging take?
With the included 48V 2A charger, a low-to-full charge typically takes 8–9 hours (overnight).

What is the top speed?
Up to 20 mph using throttle only and up to 28 mph with pedal assist (where legal).

Can it climb hills?
Yes—short, steep grades are manageable with pedaling. The motor is manufacturer-rated up to 35° max slope.

Is the display readable in sunlight?
Yes. The 2024 color LCD is bright and glare-resistant for easy viewing outdoors.

Are fenders or a rear rack included?
Compatibility is excellent, but availability varies by bundle. Many riders add fenders and a rear rack (sold separately) for commuting.

Warranty and returns are covered by Puckipuppy’s standard policy—please see the Warranty/Returns tab or contact support for details.

Ready to ride farther—on any surface?

Order the Puckipuppy Boxer today and experience full-suspension comfort with big-battery range.
