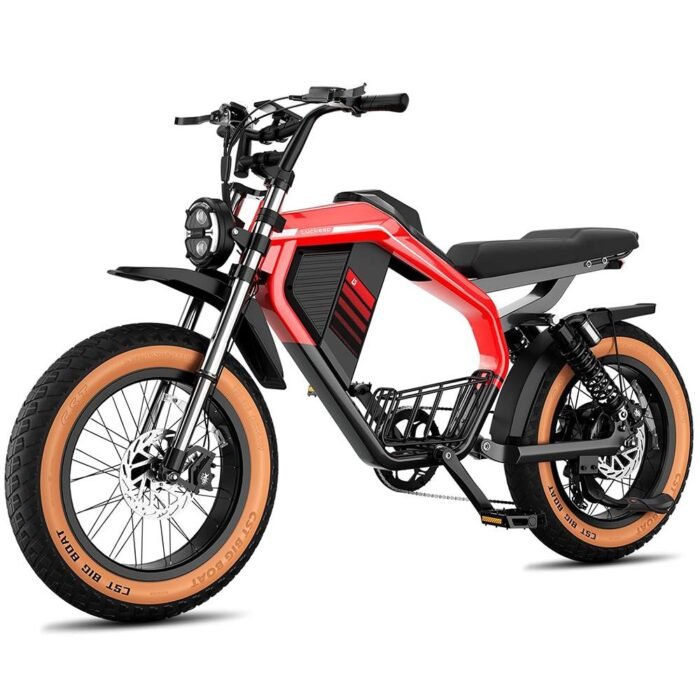

Luckeep M5 Max – Full-Suspension Fat-Tire Electric Motorbike

A moto-style e-bike with real substance: a 1500W (2000W peak) rear hub motor, 52V 20Ah battery (dual-battery ready to 40Ah / up to 160 miles), inverted front fork + dual rear oil shocks, hydraulic disc brakes (180 mm), NFC tap-to-unlock, and a long bench seat that’s actually comfortable. It accelerates hard, tracks confidently at speed, and carries serious payload.

For more details, please read our full review of the Luckeep M5 Max.

Why You’ll Love It

Serious Power & Speed – 1500W hub (2000W peak) delivers up to 37.5 mph off-road/unlocked and confident hill climbing with ~120 N·m of torque.
All-Day Range – 52V 20Ah removable battery; add the optional second 20Ah pack to ride up to 160 miles with PAS.
Real Suspension – Inverted fork up front + dual rear coil-oil shocks (rated up to 1200 lbs) smooth out broken pavement and speed bumps.
Stop With Authority – Hydraulic dual-disc brakes with 180 mm rotors shorten stopping distance and stay consistent in wet conditions.
Ride in Comfort – 20×4.0″ road-pattern fat tires roll fast and quiet; the long 19.7″ sponge saddle lets you shift position on longer rides.
Smart & Secure – NFC one-tap unlock, bright round headlight, brake light + turn signals, and an easy-to-read 4″ color display.
Built for Real Life – Max load up to 400 lbs (rider + cargo), clean cable routing, full fenders, and 90% pre-assembled with clear videos.

Legal note: High-speed mode is intended for private property/off-road where permitted. For public roads and bike paths, set speed/PAS to comply with your local Class 2/3 rules.

Highlights at a Glance

Motor: 1500W rear hub (2000W peak), ~120 N·m torque
Battery: 52V 20Ah removable (dual-battery ready to 40Ah)
Range: Up to ~80 miles PAS (single pack); up to 160 miles with 2nd pack
Top Speed: Up to 37.5 mph (off-road/unlocked)
Brakes: Hydraulic discs, 180 mm rotors
Suspension: Inverted front fork + dual rear oil shocks
Tires: 20×4.0″ puncture-resistant road tires
Display: 4″ color screen, 5 PAS levels, speed/battery/trip
Lighting: Round headlight, brake & turn signals
Security: NFC tap-to-start
Load: Up to 400 lbs total
Bike Weight: ~95 lbs
Rider Fit: ~5’3″–6’2″ (fit may vary by inseam/handlebar setup)

What’s in the Box

Luckeep M5 Max e-bike (pre-installed fenders & lighting)
52V 20Ah removable battery
3A charger & AC cable
Tool kit for final setup
User manual & display guide
NFC smart card (quantity may vary)

Use-Case Ideas

Fast Commute: Cruise 25–30 mph in PAS; arrive sweat-free and on time.
Family Runs: Bench saddle + high load rating = room for a child seat and groceries.
Beach & Boardwalks: Fat tires float over sand-adjacent paths; lighting keeps you visible at dusk.
Delivery/Long Days: Add the second 20Ah battery for genuine full-shift endurance.
Weekend Exploring: Inverted fork and dual shocks tame cracked city streets and gravel connectors.

Feature Details

Powertrain & Range

The 52V system keeps voltage sag low under load, so the M5 Max launches briskly and holds speed on climbs. Expect 35–55 miles per charge in mixed urban riding on PAS 3–4 (single battery); flatter routes at lower PAS can push higher. Add the optional second 20Ah pack to double capacity to 40Ah for up to 160 miles of PAS range.

Ride & Handling

The inverted fork adds stiffness and resists brake dive; the dual rear coil-oil shocks soak square-edge bumps without pogo. 20×4.0″ road tires reduce rolling resistance versus knobbies, helping both speed and efficiency while remaining comfortable over rough pavement.

Braking & Safety

Hydraulic discs (180 mm) offer strong initial bite with smooth modulation. The round headlight, tail brake light, and turn signals increase conspicuity in traffic. Use PAS-appropriate speeds and protective gear for best safety.

Controls & Security

A clear 4″ color display shows speed, PAS level, battery %, and trip data. 5 PAS levels + throttle give flexible control. With NFC unlock, tap and go—no fumbling for keys.

Tech Specs

Item	Specification
Motor	1500W rear hub (2000W peak), ~120 N·m torque
Battery	52V 20Ah removable; optional second 52V 20Ah (total 40Ah)
Controller	52V system with 5-level PAS + throttle
Range (PAS)	Up to ~80 miles (single); up to 160 miles (dual battery)
Top Speed	Up to 37.5 mph (unlocked/off-road)
Drivetrain	7-speed derailleur
Brakes	Hydraulic discs, 180 mm rotors (front & rear)
Suspension (Front)	Inverted hydraulic fork
Suspension (Rear)	Dual coil-oil shocks, rated up to 1200 lbs
Tires	20×4.0″ puncture-resistant road fat tires
Frame	High-strength aluminum, wide-body chassis
Display	4″ color screen (speed, PAS, battery, trip)
Lighting	Round headlight, rear brake light, turn indicators
Security	NFC one-tap unlock
Max Load	Up to 400 lbs (rider + cargo)
Bike Weight	~95 lbs (varies by accessories)
Recommended Rider Height	~5’3″–6’2″ (fit-dependent)
Charging	52V charger, 3A; ~5–6 hrs per pack
Dimensions (reference)	Length 74.8″, wheelbase 55.1″, seat length 19.7″

Specs can vary slightly by region/batch. Always check your exact configuration at checkout.

Sizing & Fit Tips

For riders near the lower end (~5’3″), consider a slight handlebar rise/angle to shorten reach.
Set tire pressure for your weight and road surface (a few PSI makes a big difference).
Use shock preload to match rider/cargo weight; aim for ~25–30% sag for comfort and control.

FAQs

Q: Is the M5 Max street-legal where I live?
A: It depends. Many regions limit e-bikes to Class 2/3 speeds. The M5 Max can be configured to comply; reserve off-road/unlocked speeds for private property where permitted.

Q: What’s the real-world range?
A: Most riders see 35–55 miles per charge (single battery) in mixed urban riding at PAS 3–4. Terrain, rider weight, wind, and temperature affect results.

Q: Can I add a rear rack and child seat?
A: Yes—choose a rack compatible with the M5 Max frame and use a seat that fits that rack’s standard. Respect the total 400-lb load limit and local child-passenger rules.

Q: Are the electronics water-resistant?
A: Components are designed for everyday wet-weather riding (IP-rated elements), but avoid submersion and always dry/maintain after heavy rain.

Q: How hard is assembly?
A: It ships ~90% pre-assembled. Typical setup (bars, pedals, front wheel, checks) takes 30–60 minutes with the included tools and video guide.

Warranty & Support

1-Year limited warranty on key components
Fast, responsive customer service (US-based HQ)
Clear video guides for assembly and maintenance

Shipping & Returns

Ships from the U.S. (timelines vary by location)
Batteries ship separately in some regions due to regulations
Please keep all packaging until you confirm the bike is set up and working

Safety & Compliance

Always ride with a certified helmet and lights at night.
Configure PAS/speed to meet local e-bike laws.
Perform a bolt check after the first 50–100 miles; re-check brake pads and rotor bolts regularly.
